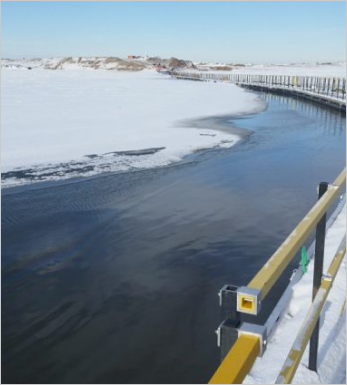

Xrosswater De-Icers

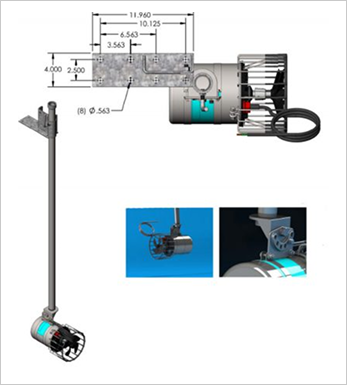

Xrosswater Deicer 6ft pole, 1HP motor = Range +- 8m
Unit Specs
| Model | Voltage | Operating amps | lock rotor amps |
|---|---|---|---|
| 2400D | 110-120 | 5.0 | 12 |
| 3400D | 110-120 | 6.7 | 18 |
| 3400HD | 208-240 | 3.4 | 9 |
| 4400D | 110-120 | 11.3 | 40 |
| 4400HD | 208-240 | 5.7 | 20 |
De-Icer Sizing Chart
| Avg. Low Air Temp | Orientation | Model | ||
|---|---|---|---|---|
| 2400 | 3400 | 4400 | ||
| 34° To 20° F | Angled | 30″ X 100″ | 35″ X 120″ | 40″ X 150″ |
| Vertical | 65″ | 85″ | 95″ | |
| 19° To 0° F | Angled | 25″ X 60″ | 30″ X 80″ | 34″ X 90″ |
| Vertical | 50″ | 70″ | 80″ | |
| -1° To 20° F | Angled | 25″ X 50″ | 30″ X 75″ | 35″ X 85″ |
| Vertical | 45″ | 65″ | 75″ | |
| Great Lakes | Angled | 20″ X 40″ | 25″ X 50″ | 30″ X 60″ |
| Vertical | 35″ | 45″ | 55″ | |

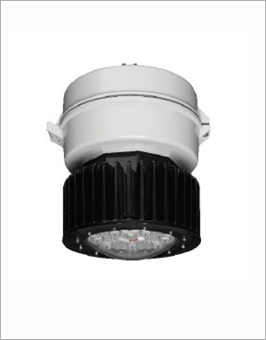

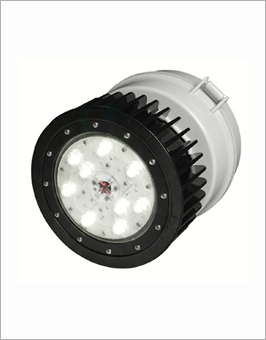

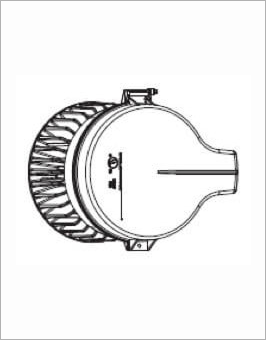

Xrosswater LED oblong spread walkway light

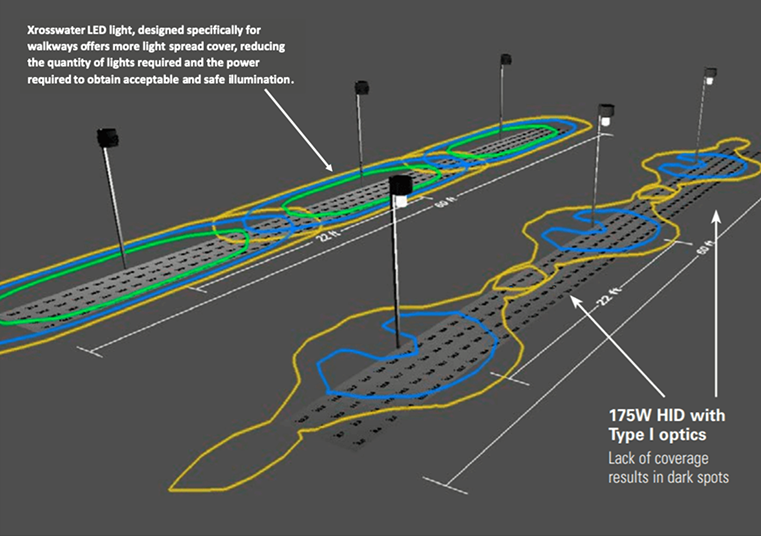

Our custom LED lights offer a very low voltage lighting system that emits up to 124 Lumens per watt and maximises the light yield by spreading the light in an oblong pattern rather than the conventional round pattern. This oblong spread covers up to 10 meters of walkway area which is double that of the round conventional lighting spread. The important user benefits of our light system, is that LED emits very low UV light, therefore the lights will not attract thousands of annoying bugs and mosquitos to the work area and the lights have a economic life expectancy of 7 to 20 years.
Technical Specifications
For more detailled technical information please download the PDF
Electrical Ratings
| Voltage Range, VAC | 120-277 | 120-277 |
| Frequency | 50/60 Hz | 50/60 Hz |
| Input Power (Watts) | 29 | 43 |
| Input Amps at 120-277 VAC | 0.24 – 0.11 | 0.35 – 0.16 |
| Voltage Range, VDCC | 108-250 | 108-250 |
| Power Factor | > 0.90 | > 0.90 |
| Total Harmonic Distortion (THD) | < 20% | < 20% |
| Nominal Lumens (Type V) F | 3,531 | 3,531 |
LED vs. HID savings at a glance
Why are so many facilities making the switch from HID to LED? The numbers say it all.
64% Reduction in
energy cost
75% lower total cost
of ownership
100% maintenance
reduction
Assumption: calculation based on overall life of the LED system. Energy cost of $.09 per kilowatt. 24 hours per day operation, labor rate of dollar 75 each for two workers average time for fixture maintenance of 1 hour.

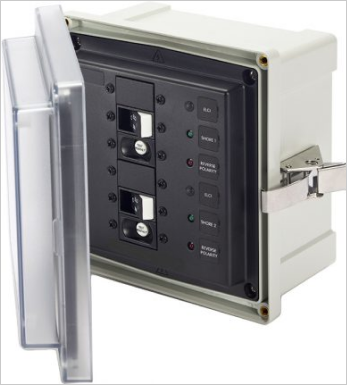

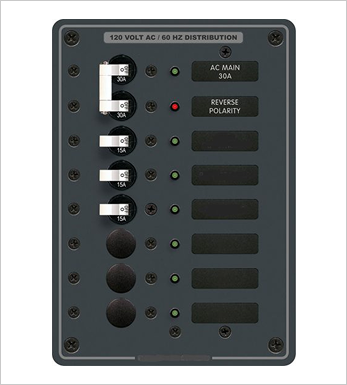

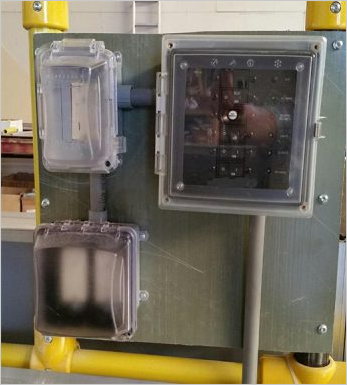

Water Resistant Control Panel
Temperature Range
-40C to 85C
Cover Screw and hardware
10-32 Stainless steel
Exterior Cover dimensions 192mm x 188mm x 120mm
Main circuit breaker Equipment Leakage Circuit
Interrupter (ELCI) 30 -50 amp
LED indicators
4 x green on LED indicators 120v to 240v AC
LED indicators
1 x red reverse polarity LED indicator

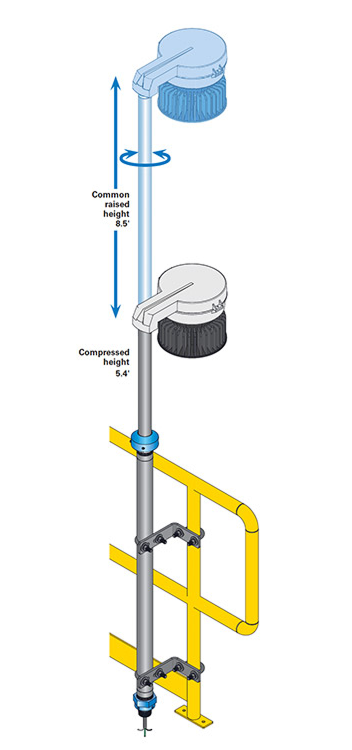

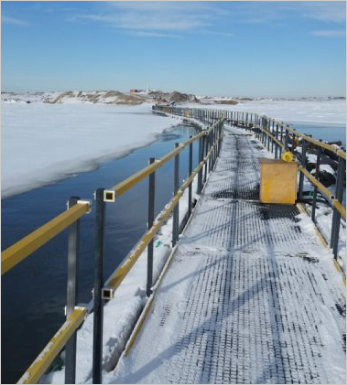

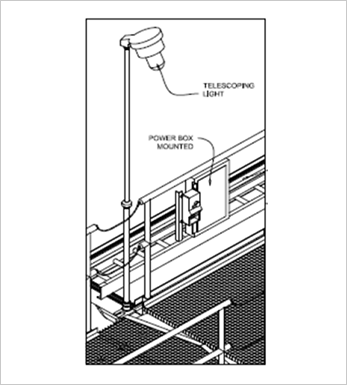

Xrosswater Telescopic Light Poles for Walkways
The unique telescopic light poles allowing easy access to the light fitting without the use of ladders removing OSHA and HSE fall prevention regulations. From 1.5m to over 2.4m
Technical Specifications
For more detailled technical information please download the PDF

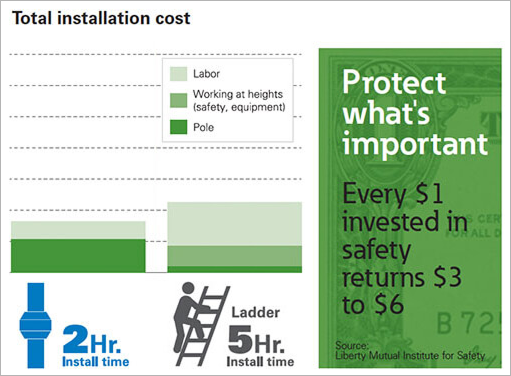

Significant cost savings
Reduce initial and long-term costs
The only pole replacement solution listed for classified and hazardous locations.
Innovative Telescopic Design
Technical Specifications
Adjustable 360° pole rotation allows for effortless positioning of light
Simple vertical travel
Easily extend to any raised height – one product covers multiple mounting heights
Luminaire housing will not fall from mounting module hinge hook during installation or maintenance
No pinch points – protects hands and fingers
Less force exerted on handrail
Fully assembled and wired
Factory assembled wired and sealed for maximum environmental protection
Reduces installation time
Ideal for mod yard construction
Designed for harsh environments
Classified and hazardous locations
No lubricants or maintenance required
Rated for corrosive, wet, dusty, hot and cold conditions prior to use of optional harsh environment cover
Simple Operation
Innovative design eliminates consideration of surrounding obstructions
Telescoping design allows for safe transport on job site
Easily adjust fixture position from ground or walkway
Rugged construction
2″ bottom pole for higher structural wind ratings
Internal conduit for cable protection and moisture resistance
